A full application
The firefox network configuration
Now we are going to resume everything we have seen with a concrete example.

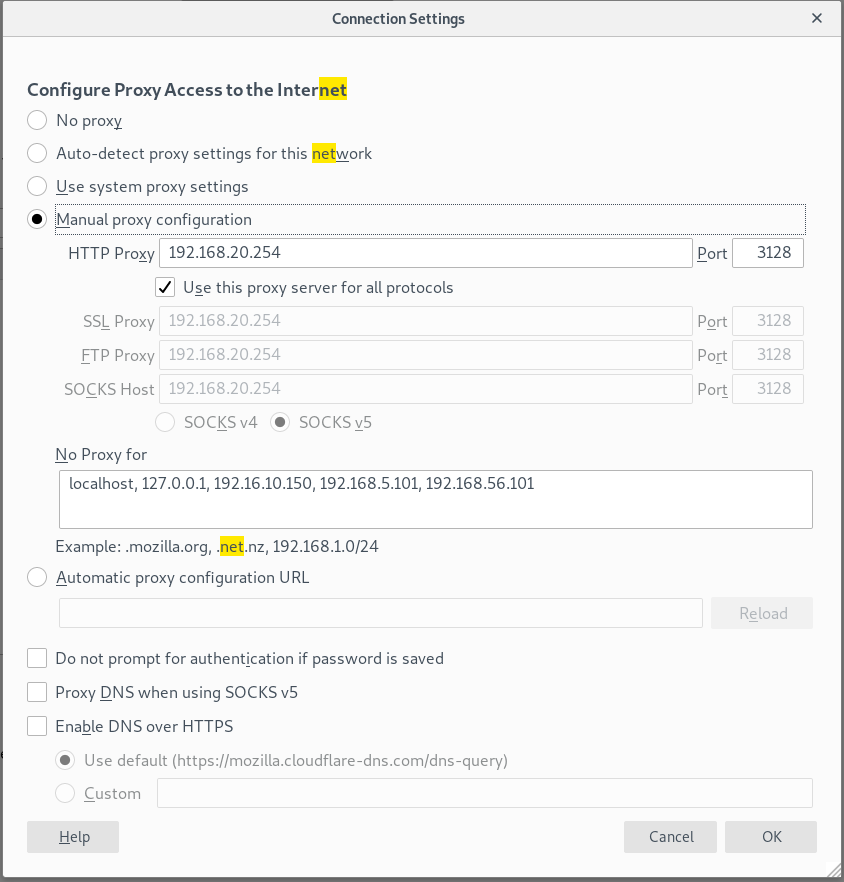

We’re going to take an example based on the Mozilla Firefox proxy’s
configuration, like what is required when you open the network settings in
the General configuration’s firefox page:
The tiramisu’s configuration
Build the Config
First, let’s create our options :
1from tiramisu import BoolOption, ChoiceOption, DomainnameOption, PortOption, URLOption, \
2 OptionDescription, Calculation, Params, ParamOption, ParamValue, \
3 Config, calc_value, calc_value_property_help
4proxy_mode = ChoiceOption('proxy_mode',
5 'Proxy\'s config mode',
6 ('No proxy',
7 'Auto-detect proxy settings for this network',
8 'Use system proxy settings',
9 'Manual proxy configuration',
10 'Automatic proxy configuration URL'),
11 default = 'No proxy',
12 properties=('mandatory',))
This first option is the most important one : its value will determine which other options are disabled and which are not. The same thing will happen with other options later. Here are the others options we’ll be using :
1http_address = DomainnameOption('http_address',
2 'Address',
3 allow_ip=True,
4 properties=('mandatory',))
5http_port = PortOption('http_port',
6 'Port',
7 default='8080',
8 properties=('mandatory',))
9http_proxy = OptionDescription('http_proxy',
10 'HTTP Proxy',
11 [http_address, http_port])
12
13use_for_all_protocols = BoolOption('use_for_all_protocols',
14 'Use HTTP IP and Port for all protocols',
15 default=True)
16
17
18# if this option is valued with 'True', set all the others IP and port values to the same as HTTP IP and port.
19ssl_address = DomainnameOption('ssl_address',
20 'Address',
21 Calculation(protocols_settings,
22 Params((ParamOption(use_for_all_protocols), ParamOption(http_address)))),
23 allow_ip=True,
24 properties=('mandatory', 'force_default_on_freeze',
25 Calculation(calc_value,
26 Params(ParamValue('frozen'),
27 kwargs={'condition': ParamOption(use_for_all_protocols, todict=True),
28 'expected': ParamValue(True)}),
29 calc_value_property_help)))
30ssl_port = PortOption('ssl_port',
31 'Port',
32 Calculation(protocols_settings,
33 Params((ParamOption(use_for_all_protocols), ParamOption(http_port)))),
34 properties=('mandatory', 'force_default_on_freeze',
35 Calculation(calc_value,
36 Params(ParamValue('frozen'),
37 kwargs={'condition': ParamOption(use_for_all_protocols, todict=True),
38 'expected': ParamValue(True)}),
39 calc_value_property_help)))
40ssl_proxy = OptionDescription('ssl_proxy',
41 'SSL Proxy',
42 [ssl_address, ssl_port],
43 properties=(Calculation(calc_value,
44 Params(ParamValue('hidden'),
45 kwargs={'condition': ParamOption(use_for_all_protocols, todict=True),
46 'expected': ParamValue(True)}),
47 calc_value_property_help),))
48
49ftp_address = DomainnameOption('ftp_address',
50 'Address',
51 Calculation(protocols_settings,
52 Params((ParamOption(use_for_all_protocols), ParamOption(http_address)))),
53 allow_ip=True,
54 properties=('mandatory', 'force_default_on_freeze',
55 Calculation(calc_value,
56 Params(ParamValue('frozen'),
57 kwargs={'condition': ParamOption(use_for_all_protocols, todict=True),
58 'expected': ParamValue(True)}),
59 calc_value_property_help)))
60ftp_port = PortOption('ftp_port',
61 'Port',
62 Calculation(protocols_settings,
63 Params((ParamOption(use_for_all_protocols), ParamOption(http_port)))),
64 properties=('force_default_on_freeze',
65 Calculation(calc_value,
66 Params(ParamValue('frozen'),
67 kwargs={'condition': ParamOption(use_for_all_protocols, todict=True),
68 'expected': ParamValue(True)}),
69 calc_value_property_help)))
70ftp_proxy = OptionDescription('ftp_proxy',
71 'FTP Proxy',
72 [ftp_address, ftp_port],
73 properties=(Calculation(calc_value,
74 Params(ParamValue('hidden'),
75 kwargs={'condition': ParamOption(use_for_all_protocols, todict=True),
76 'expected': ParamValue(True)}),
77 calc_value_property_help),))
78
79socks_address = DomainnameOption('socks_address',
80 'Address',
81 Calculation(protocols_settings,
82 Params((ParamOption(use_for_all_protocols), ParamOption(http_address)))),
83 allow_ip=True,
84 properties=('mandatory', 'force_default_on_freeze',
85 Calculation(calc_value,
86 Params(ParamValue('frozen'),
87 kwargs={'condition': ParamOption(use_for_all_protocols, todict=True),
88 'expected': ParamValue(True)}),
89 calc_value_property_help)))
90socks_port = PortOption('socks_port',
91 'Port',
92 Calculation(protocols_settings,
93 Params((ParamOption(use_for_all_protocols), ParamOption(http_port)))),
94 properties=('mandatory', 'force_default_on_freeze',
95 Calculation(calc_value,
96 Params(ParamValue('frozen'),
97 kwargs={'condition': ParamOption(use_for_all_protocols, todict=True),
98 'expected': ParamValue(True)}),
99 calc_value_property_help)))
100socks_version = ChoiceOption('socks_version',
101 'SOCKS host version used by proxy',
102 ('v4', 'v5'),
103 default='v5',
104 properties=('force_default_on_freeze',
105 Calculation(calc_value,
106 Params(ParamValue('frozen'),
107 kwargs={'condition': ParamOption(use_for_all_protocols, todict=True),
108 'expected': ParamValue(True)}),
109 calc_value_property_help)))
110socks_proxy = OptionDescription('socks_proxy',
111 'Socks host proxy',
112 [socks_address, socks_port, socks_version],
113 properties=(Calculation(calc_value,
114 Params(ParamValue('hidden'),
115 kwargs={'condition': ParamOption(use_for_all_protocols, todict=True),
116 'expected': ParamValue(True)}),
117 calc_value_property_help),))
118protocols = OptionDescription('protocols',
119 'Protocols parameters',
120 [http_proxy,
121 use_for_all_protocols,
122 ssl_proxy,
123 ftp_proxy,
124 socks_proxy],
125 properties=(Calculation(calc_value,
126 Params(ParamValue('disabled'),
127 kwargs={'condition': ParamOption(proxy_mode, todict=True),
128 'expected': ParamValue('Manual proxy configuration'),
129 'reverse_condition': ParamValue(True)}),
130 calc_value_property_help),))
131
132auto_config_url = URLOption('auto_config_url',
133 'Proxy\'s auto config URL',
134 allow_ip=True,
135 properties=('mandatory',
136 Calculation(calc_value,
137 Params(ParamValue('disabled'),
138 kwargs={'condition': ParamOption(proxy_mode, todict=True),
139 'expected': ParamValue('Automatic proxy configuration URL'),
140 'reverse_condition': ParamValue(True)}),
141 calc_value_property_help),))
142
143no_proxy = DomainnameOption('no_proxy',
144 'Address for which proxy will be desactivated',
145 multi=True,
146 allow_ip=True,
147 allow_cidr_network=True,
148 allow_without_dot=True,
149 allow_startswith_dot=True,
150 properties=(Calculation(calc_value,
151 Params(ParamValue('disabled'),
152 kwargs={'condition': ParamOption(proxy_mode, todict=True),
153 'expected': ParamValue('No proxy')}),
154 calc_value_property_help),))
155
156prompt_authentication = BoolOption('prompt_authentication',
157 'Prompt for authentication if password is saved',
158 default=False,
159 properties=(Calculation(calc_value,
160 Params(ParamValue('disabled'),
161 kwargs={'condition': ParamOption(proxy_mode, todict=True),
162 'expected': ParamValue('No proxy')}),
163 calc_value_property_help),))
164proxy_dns_socks5 = BoolOption('proxy_dns_socks5',
165 'Use Proxy DNS when using SOCKS v5',
166 default=False,
167 properties=(Calculation(calc_value,
168 Params(ParamValue('disabled'),
169 kwargs={'condition_1': ParamOption(socks_version,
170 raisepropertyerror=True),
171 'expected_1': ParamValue('v4'),
172 'condition_2': ParamOption(proxy_mode, todict=True),
173 'expected_2': ParamValue('No proxy'),
174 'condition_operator': ParamValue('OR')}),
175 calc_value_property_help),))
176enable_dns_over_https = BoolOption('enable_dns_over_https',
177 'Enable DNS over HTTPS',
178 default=False)
179
180used_dns = ChoiceOption('used_dns',
181 'Used DNS',
182 ('default', 'custom'),
183 properties=(Calculation(calc_value,
184 Params(ParamValue('disabled'),
185 kwargs={'condition': ParamOption(enable_dns_over_https, todict=True),
186 'expected': ParamValue(False)}),
187 calc_value_property_help),))
188
189custom_dns_url = URLOption('custom_dns_url',
190 'Custom DNS URL',
191 properties=(Calculation(calc_value,
192 Params(ParamValue('disabled'),
193 kwargs={'condition': ParamOption(used_dns, todict=True,
194 raisepropertyerror=True),
195 'expected': ParamValue('default')}),
196 calc_value_property_help),))
197dns_over_https = OptionDescription('dns_over_https',
198 'DNS over HTTPS',
199 [enable_dns_over_https, used_dns, custom_dns_url])
As you can see, we’re using value, property and Calculation in the setting of our options, because we have many options which value or accessibility is depending on the value of other options.
Now we need to create OptionDescriptions and configs :
1rootod = OptionDescription('proxy',
2 'Proxy parameters',
3 [proxy_mode,
4 protocols,
5 no_proxy,
6 auto_config_url,
7 prompt_authentication,
8 proxy_dns_socks5, dns_over_https])
9proxy_config = Config(rootod)
10proxy_config.property.read_write()
Download the full code of this example.
As you can see, we regrouped a lot of options in ‘protocols’, so we can set a calculated disabled property
that is apply to all those options. This way, we don’t have to put the instruction on every option
one by one.
Let’s try
Now that we have our Config, it’s time to run some tests ! Here are a few code blocks you can test and the results you should get :
Automatic proxy configuration URL:
>>> proxy_config.property.read_write()
>>> proxy_config.option('proxy_mode').value.set('Automatic proxy configuration URL')
>>> proxy_config.option('auto_config_url').value.set('http://192.168.1.1/wpad.dat')
>>> proxy_config.property.read_only()
>>> for path, value in proxy_config.value.get().items():
... print(proxy_config.option(path).option.doc() + ': "' + str(value) + '"')
Proxy's config mode: "Automatic proxy configuration URL"
Address for which proxy will be desactivated: "[]"
Proxy's auto config URL: "http://192.168.1.1/wpad.dat"
Prompt for authentication if password is saved: "False"
Enable DNS over HTTPS: "False"
Auto-detect proxy settings for this network:
>>> proxy_config.property.read_write()
>>> proxy_config.option('proxy_mode').value.set('Auto-detect proxy settings for this network')
>>> proxy_config.option('no_proxy').value.set(['localhost',
... '127.0.0.1',
... '192.16.10.150',
... '192.168.5.101',
... '192.168.56.101/32',
... '192.168.20.0/24',
... '.tiramisu.org',
... 'mozilla.org'])
>>> proxy_config.option('dns_over_https.enable_dns_over_https').value.set(True)
>>> proxy_config.option('dns_over_https.used_dns').value.set('default')
>>> proxy_config.property.read_only()
>>> for path, value in proxy_config.value.get().items():
... print(proxy_config.option(path).option.doc() + ': "' + str(value) + '"')
Proxy's config mode: "Auto-detect proxy settings for this network"
Address for which proxy will be desactivated: "['localhost', '127.0.0.1', '192.16.10.150', '192.168.5.101', '192.168.56.101/32', '192.168.20.0/24', '.tiramisu.org', 'mozilla.org']"
Prompt for authentication if password is saved: "False"
Enable DNS over HTTPS: "True"
Used DNS: "default"
Set use_for_all_protocols to True:
>>> proxy_config.property.read_write()
>>> proxy_config.option('protocols.use_for_all_protocols').value.set(True)
>>> proxy_config.property.read_only()
>>> for path, value in proxy_config.value.get().items():
... print(proxy_config.option(path).option.doc() + ': "' + str(value) + '"')
Proxy's config mode: "Manual proxy configuration"
Address: "192.168.20.1"
Port: "8080"
Use HTTP IP and Port for all protocols: "True"
Address: "192.168.20.1"
Port: "8080"
Address: "192.168.20.1"
Port: "8080"
Address: "192.168.20.1"
Port: "8080"
SOCKS host version used by proxy: "v5"
Address for which proxy will be desactivated: "[]"
Prompt for authentication if password is saved: "False"
Use Proxy DNS when using SOCKS v5: "False"
Enable DNS over HTTPS: "True"
Used DNS: "custom"
Custom DNS URL: "https://dns-url.com"
